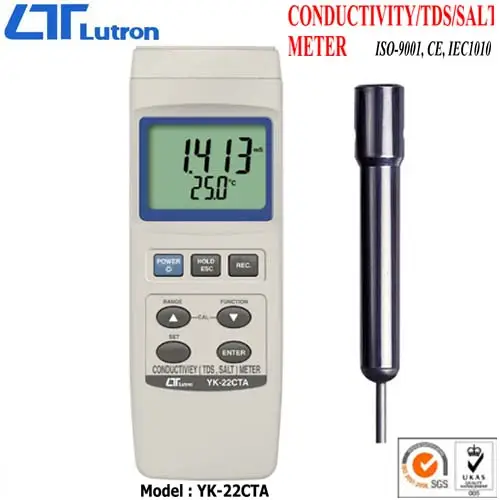

Conductivity Meter/TDS/SALT YK-22CTA | Lutron Taiwan

Call for Price

Conductivity Meter/TDS/SALT Meter

Brand: Lutron Instruments

Model: YK-22CTA

Country of Origin: Taiwan



Category:

Conductivity Meter/TDS/SALT YK-22CTA | Lutron Taiwan

Product Overview

Achieve Precision with a Smart and Versatile Water Quality Meter

The YK-22CTA Multi-Parameter Water Quality Meter offers accurate and reliable measurements for various parameters, making it an essential tool for applications in water conditioning, aquariums, food processing, and more.

Exceptional Features of the YK-22CTA:

1. Multi-Parameter Measurement: Measures conductivity, TDS, and salt, providing comprehensive testing capabilities.

2. Automatic Temperature Compensation: Built-in temperature sensor provides automatic temperature compensation (ATC) from 0℃ to 60℃ (32℉ to 140℉), ensuring precise readings.

3. Wide Measurement Range: Offers a wide range for conductivity (0 to 200 mS), TDS (0 to 200,000 PPM), and salt (0 to 12% by weight).

4. User-Friendly Functions: Includes data hold, memory recall for maximum and minimum values, and an auto power-off feature to save battery life.

5. RS232/USB Interface: Equipped with RS232 and USB interfaces for easy data transfer to a computer, facilitating further analysis and record-keeping.

Technical Specifications:

– Measurement Ranges:

  – Conductivity:

– 0 to 200 µS

– 0.2 to 2.000 mS

– 2 to 20.00 mS

– 20 to 200.0 mS

  – TDS:

– 0 to 132 PPM

– 132 to 1,320 PPM

– 1,320 to 13,200 PPM

– 13,200 to 132,000 PPM

  – Salt: 0 to 12% salt (by weight)

– Resolutions:

 – Conductivity: 0.1 µS, 0.001 mS, 0.01 mS, 0.1 mS

  – TDS: 0.1 PPM, 1 PPM, 10 PPM, 100 PPM

 – Salt: 0.01% salt

– Accuracy:

– Conductivity: ±2% F.S. + 1d

– TDS: ±2% F.S. + 1d

 – Salt: ±0.5% salt value

– Display: LCD size 52 mm x 38 mm with green backlight

– Temperature Compensation: Automatic from 0℃ to 60℃ (32℉ to 140℉) with a variable factor between 0 to 5.0% per ℃

– Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)

– Operating Humidity: Less than 85% RH

– Power Supply: DC 1.5V batteries (UM-3, AA) x 6 or DC 9V adapter

– Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)

– Weight: 489 g (1.08 lb)

Included Accessories:

– Instruction manual

– Hard carrying case (CA-06)

– Conductivity/TDS/Salt probe (CDPB-03)

Optional Accessories:

– Pt Conductivity/TDS/Salt probe (CDPB-04)

– 1.413 mS Conductivity Standard Solution (CD-14)

– AC to DC 9V adapter

– USB cable (USB-01)

– RS232 cable (UPCB-02)

– Data Acquisition software (SW-U801-WIN)

– Excel Data Acquisition software (SW-e802)

Versatile Applications:

Ideal for use in aquariums, beverage industry, fish hatcheries, food processing, photography, laboratories, paper industry, plating industry, quality control, schools, colleges, and water conditioning.

Invest in the YK-22CTA Multi-Parameter Water Quality Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.

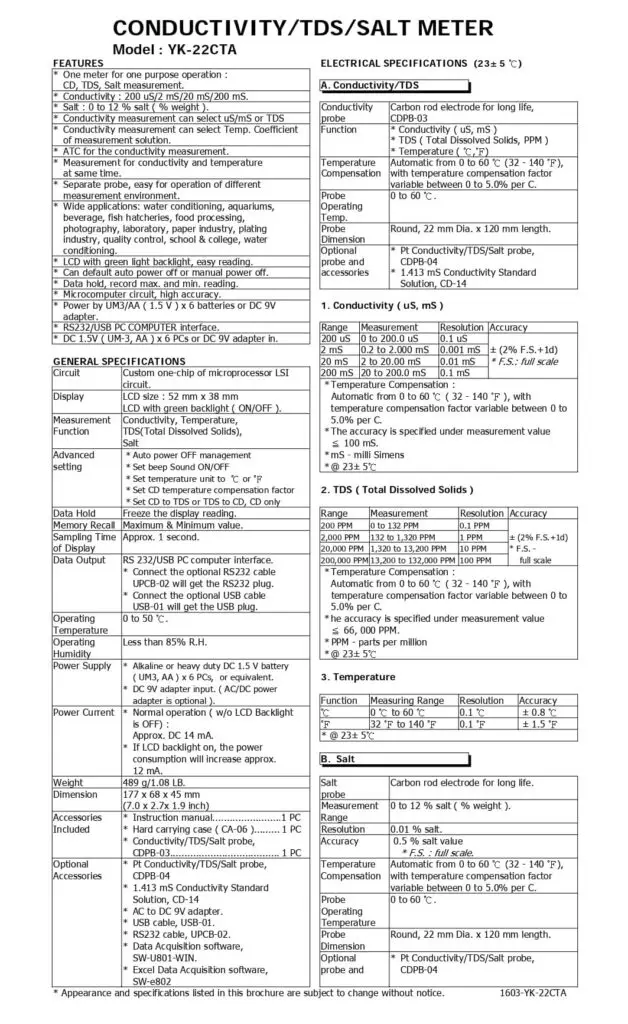

Technical Specifications Conductivity Meter/TDS/SALT Meter:

Display LCD size : 52 mm x 38 mm
LCD with green backlight ( ON/OFF ).
Measurement & Range Conductivity, Temperature,
TDS(Total Dissolved Solids),
Salt
Resolution /
Accuracy /
Over Range Indicator /
Sampling Time Approx. 1 second.
Temp.Compensation Automatic from 0 to 60 °C (32 – 140 °F),
with temperature compensation factor variable between 0 to 5.0% per C.
Operating Temp. 0 to 50 °C.
Operating Humidity Less than 85% R.H.
Power Supply * Alkaline or heavy duty DC 1.5 V battery
( UM3, AA ) x 6 PCs, or equivalent.
* DC 9V adapter input. ( AC/DC power
adapter is optional ).
Power Current * Normal operation ( w/o LCD Backlight is OFF) : Approx. DC 14 mA.

* If LCD backlight on, the power
consumption will increase approx.
12 mA.

Dimension 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
Electrode Size /
Calibrtaion Solution /
Dala Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
CD Calibration /
Circuit Custom one-chip of microprocessor LSI circuit.
Power Consumption /
Weight 489 g/1.08 LB.
Power off /
Function /
Ranges and Resolution /
Conductivity Probe Structure /
Data Output RS 232/USB PC computer interface.
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
* Connect the optional USB cable USB-01 will get the USB plug.
Sampling Time of Data Logger /
Data Logger number /
Accessories Included * Instruction manual : 1 PC
* Hard carrying case ( CA-06 ) : 1 PC
* Conductivity/TDS/Salt probe, CDPB-03 : 1 PC
Optional Accessories * Pt Conductivity/TDS/Salt probe, CDPB-04
* 1.413 mS Conductivity Standard Solution, CD-14
* AC to DC 9V adapter.
* USB cable, USB-01.
* RS232 cable, UPCB-02.
* Data Acquisition software, SW-U801-WIN.
* Excel Data Acquisition software, SW-e802

Conductivity Meter/TDS/SALT YK-22CTA | Lutron
