Portable Conductivity Meter with Replaceable Probe | Milwaukee Romania
Call for Price

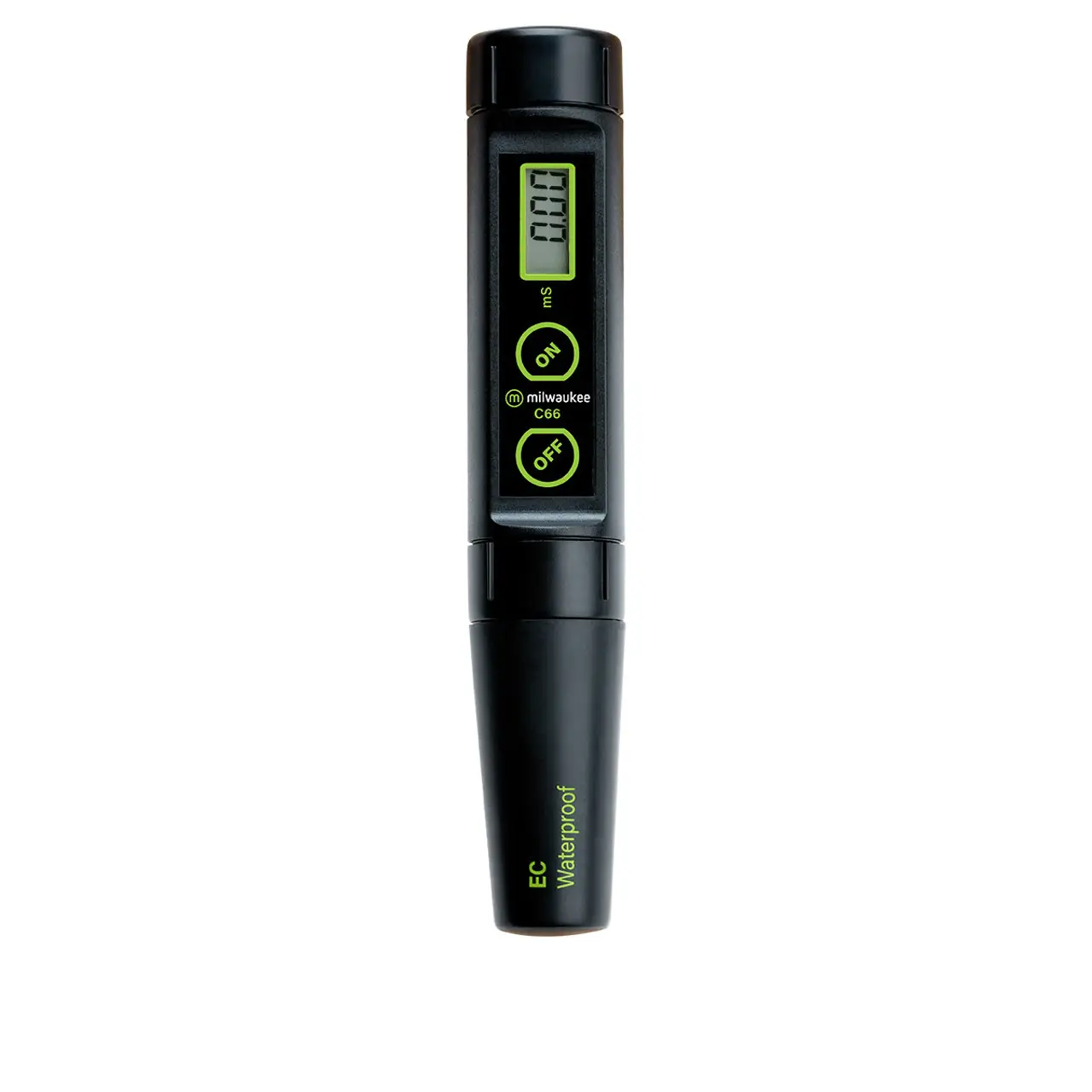

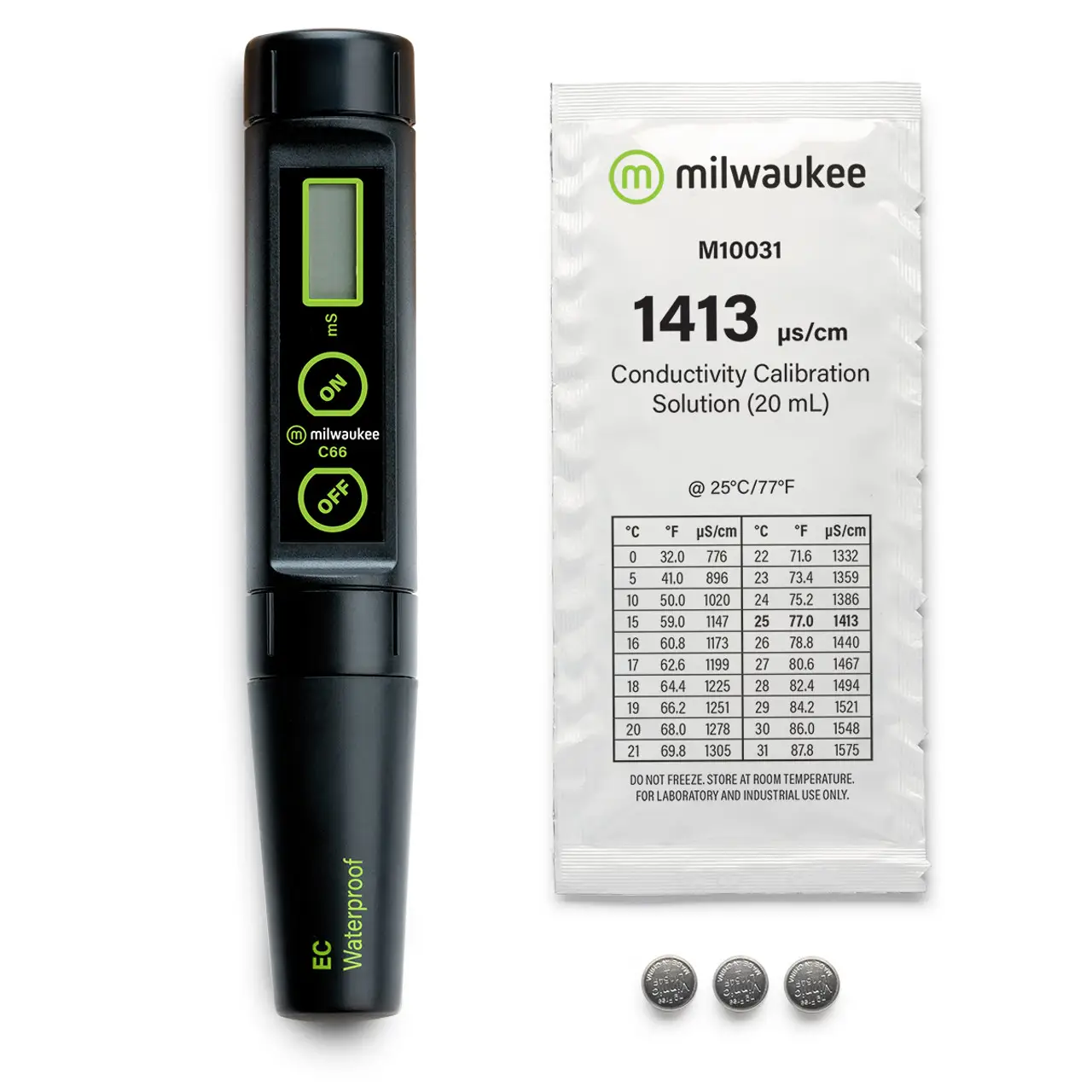

Portable Conductivity Meter C66
Brand: Milwaukee Instruments
Model: C66
Country of origin: Romania
- Accuracy:EC: ±2% Full Scale
- Temperature Compensation:Automatic
- Range:0.00 to 10.00 mS/cm
Portable Conductivity Meter with Replaceable Probe
Description
The Milwaukee Conductivity Pen is designed for hydroponic and other growers to help you make sure that your plants are receiving the right amount of nutrient. Keep EC in your target range to help your achieve better results.
Design Features
- Measures conductivity and temperature with automatic temperature compensation.
- Ideal range for hydroponics (0.00 to 10.00 mS/cm).
- Units in mS/cm easily convertable to ppm.
- Factory calibrated with the ability to recalibrate if needed.
- Replaceable electrode.
- Fully waterproof to IP65.
- 250 hours continuous use (3 x 1.5V batteries included).
Converting EC to TDS
The Milwaukee EC Pen, like all conductivity meters, provides a measure of electrically charged ions in a solution and is an absolute measure of conductivity.
EC is often converted to TDS in parts per million (ppm). Different scales include the 500 scale, 650 scale and the 700 scale. However, true PPM can only be determined through chemical analysis.
Your mS/cm reading can be approximately converted to TDS (ppm) as shown in the examples below.
2.00 mS/cm = 2000 uS/cm = 1000 ppm on .50 factor scale
2.00 mS/cm = 2000 uS/cm = 1400 ppm on the 442 scale or .70 factor scale
Specifications
- Range: 0.00 to 10.00 mS/cm
- Resolution: 0.01 mS/cm
- Accuracy: ±2% Full Scale
- Typical EMC Deviation: ±2% Full Scale
- Temperature Compensation: Automatic from 5 to 50°C, with ß=2%/°C
- Calibration: Manual, at 1 point through trimmer
- Probe: MA73076 (replaceable)
- Environment: 0 to 50°C / 32 to 122°F; max RH 100%
- Battery Type: 3 x 1.5V (included)
- Battery Life: Approx. 250 hours of continuous use
- Dimensions: 6.5 x 1.2 x 1.2 inches
- Weight: 3.5 ounces
