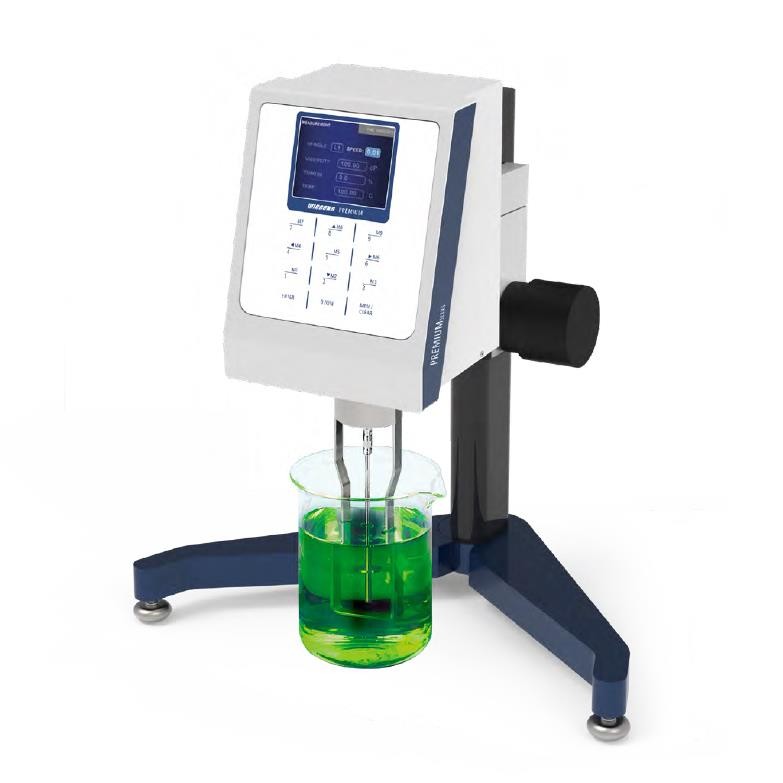

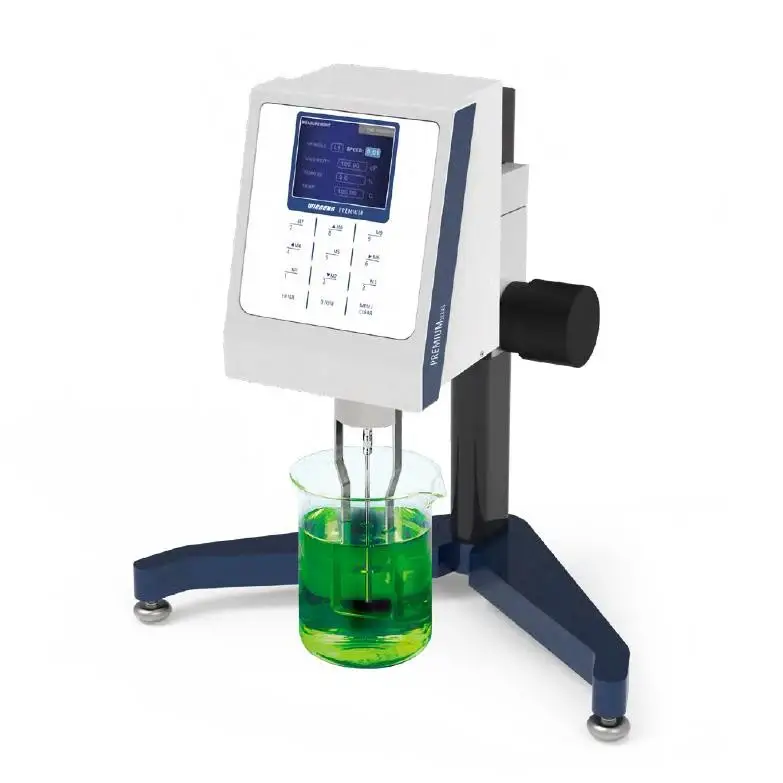

PREMIUM Laboratory Viscometer | WIGGENS Germany

Laboratory Viscometer

SMART Laboratory Viscometer | WIGGENS Germany

Description

Innovative equipment with an advanced design and multifunctional viscosity measurements.

> Colour TFT screen for easy readings and fast data recognition.
> Intuitive full-touch keypad: data at your fingertips.
> New USB connection: Type A 2.0 generation for downloading data to the PC.

Screen Data:
Selected speed……………………………………………………………………………….r.p.m.
Selected spindle…………………………………………………………………………………SP
Viscosity reading……………………………………………………………..cP (mPa·s) or cSt
Percentage of full scale…………………………………………………………………………%
Sample temperature…………………………………………………………………… ºC or ºF
Shear Rate (with coaxial spindles) ……………………………………………………SR (s-1)
Shear Stress (with coaxial spindles) ……………………………………………..SS (N/m2 )
Density (introduced by the user) ……………………………………………………….g/cm3

Viscosity reading:
> Dynamic viscosity (cP or mPa·s)
> Kinematic viscosity (cSt).
> Units Converter from SI to CGS.

Program Features:
> Time to torque: Ending of the test upon reaching a programmed torque.
> Time to stop: Ending of the test upon reaching a programmed time.
> Multistep: posibility to programme several essays in a successive way
> Ramps: essay programation with an initial and final speed in an specific time
> 10 working memories.

Other main features:
> AUTO-TEST with visual and resonant alarm
> AUTO-RANGE function
> Temperature Reading through PT100 probe
> User-enabled viscosity and temperature calibration
> 6 language options
> Port: USB
> Datalogger: Posibility to tranfer data to a pendrive into Excel format
> Statistics: Posibility to see data in graphics

Standard delivery:
• The equipement is supplied complete with standard spindles (4 spindles for L model / 6 spindles for R and H models)
• Viscometer stand
• Spindle protector
• Temperature probe PT100
• Carrying case
• USB cable
• External power supply

Technical File
> Precision: +/- 1% full scale of range
> Resolution:
For a minus viscosity of 100 cP : 0.01 cP
For a major viscosity of 1000 cP : 0.1 cP
For a major viscosity of 5000 cP : 1.0 cP
For a major viscosity of 10.000 cP : 5.0 cP
For a major viscosity of 25.000 cP : 10.0 cP
For a major viscosity of 50.000 cP : 25.0 cP
For a major viscosity of 100.000 cP : 100.0 cP
For a major viscosity of 1.000.000 cP : 1.000.0 cP
> Repeatability: 0.2%
> Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF
> Precision: +/- 0.2ºC / +/- 17.666 ºF
> Type of probe: PT100
> Supplied at 110-240VAC, 50/60 Hz.
> Software: FGB Data Boss The FGB Data Boss software complies the FDA 21CFR PART 11 regulation

Accessories
> APM Small Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
> APM/B Small Sample Adapter without circulation jacket (without TL or TR spindles). Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
> LCP Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
> LCP/B Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
> HELDAL Helix Drive Unit. Accessory for measuring non-flowing substances viscosity (with spindles)
> THERMOSPHERE Temperature control unit up to 300 ºC

Spindles:
AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity.

Standards:
These are the standards our units follow:
• BS: 6075, 5350
• ISO:2555,1652
• ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
