Vacuum Drying Oven SH-VDO-70NG | SH Scientific Korea
Call for Price

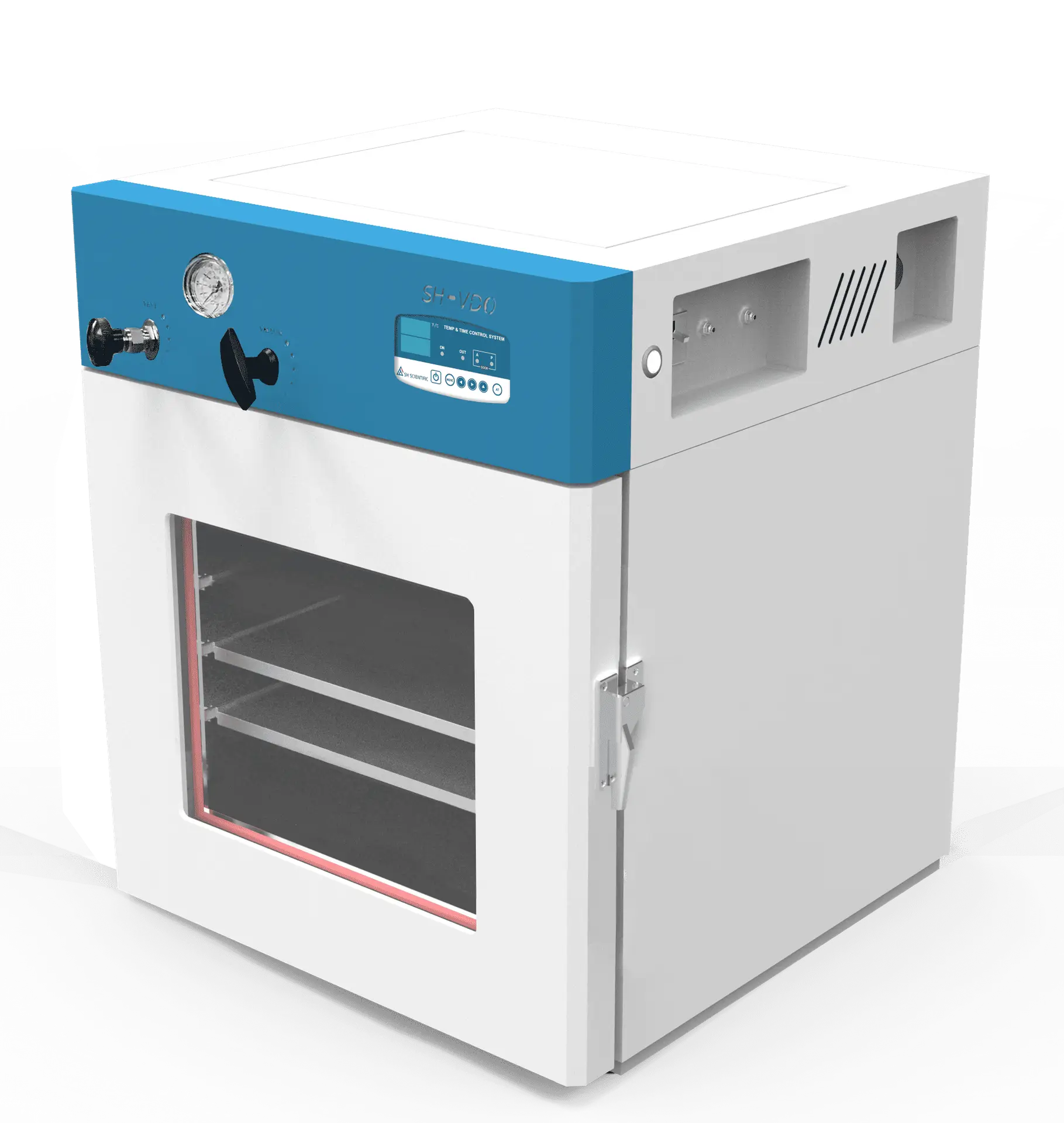

Laboratory Vacuum Drying Oven
Brand: SH Scientific
Model: SH-VDO-70NG
Country of Origin: Korea
- Temp Range: Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉)
- Capacity Volume: 46 L
- Heater Capacity: 1350 W
Vacuum Drying Oven SH-VDO-70NG | SH Scientific Korea
– Separated vacuum port and vent port
– Du-aluminium Shelves(Excellent heat conductivity)
– Internal observation is possible through View Window
– Excellent temperature uniformity and accuracy
– Stainless Steel Internal Chamber with shelves
– Safety assurance with C.E conformity
Technical Specification:
| Model | SH-VDO-70NG |
| Temp Range | Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉) |
| Time Range | 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer |
| Vacuum Resistance | 0 to 76 cmHg (0 to 0.1MPa) |
| Heating Type | Hot Air Jacketed |
| Temp&Time controller | Microprocess PID Membrane Touch Digital controller |
| LED Lamp | DC 24V, 1.2W, LED bar, Waterproof, Cool White |
| Heater Capacity | 1350 W |
| Dimension Internal
(W×D×H) |
400×400×400mm
15.75×15.75×15.75″ |
| Dimension External
(W×D×H) |
705x620x870mm
27.75×24.80×34.25” |
| Weight | 100 kg |
| Capacity | 64 L |
| Material Internal | Stainless Steel |
| Material External | Steel Plate With Powder Heating Coated |
| Materal Packing | Silicon Rubber Packing |
| View Window | Tempered Glass |
| Aluminium Shelves | 3 Supplied (5 Maximum) |
| Electrical Requirements
120V ,50/60Hz, 1Φ |
11.3 A |
| Cat. No. | VDO70NG120 |
| Electrical Requirements
230V,50/60Hz, 1Φ |
6 A |
| Cat. No. | VDO70NG230 |
• Option
-Programmable controller (30NG, 70NG)
-RS-485 interface (30NG, 70NG)
-RS-232C interface (30NG, 70NG)
• Safety Device
-Over temp controller
-Automatic reset function incoming power cut
-Buzzer on when set time arrived
-Electric leakage breaker
-Feature
A Vacuum Oven is used for drying at low temperatures by lowering the pressure. In addition, this unit dries samples without causing residues, scaling, or oxidation. Thus, this equipment widely \used in laboratories and other related industries.
– View window with spring mounted shatter proof safety glass panel
– RS-485 or RS-232C interface
– Digital PID controller
– Stainless steel & Door sealing gasket
– Steel plate with powder heating coated
– Leveling feet / caster
– Safety devices
– LED Lamp & Switch
– Stainless steel Pipe & Connector & Valve
Check out our other products in this series…Vacuum Oven
