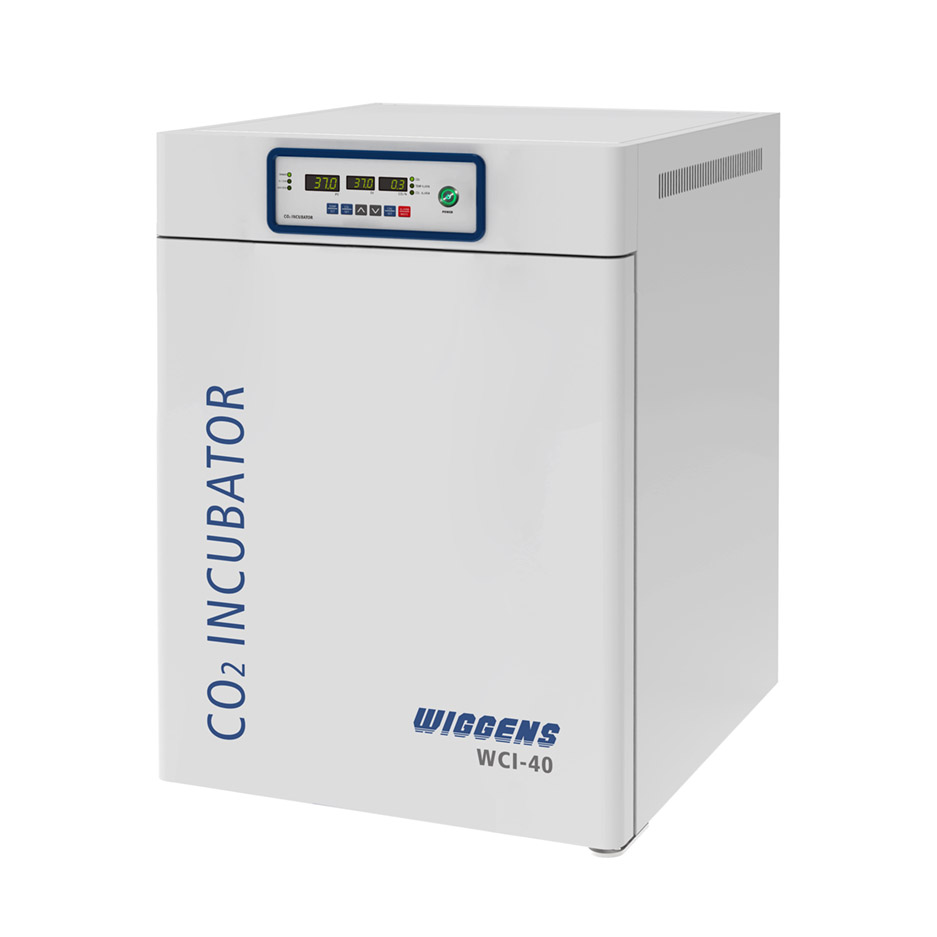

WCI-40 CO2 Incubator | WIGGENS Germany

Description

The incubator is ideal for the experiments of the cultivation of animal cells, sperm/ovum, anaerobic cells, all sorts of microbe cells, hatching/germinating and special tissues.

Features
Fast Heat-Up, Fast-Recovery, Stable Control

6 Sides Direct Heating System
Electric heating wire is covered on all sides of the chamber which makes stable uniformity and provides fast heat-up & temperature recovery.3 parts of heating section are controlled and calibrated individually by 3 temperature sensors.

Dry Wall and Air Jacket
Warm air from heating wire is preserved in space between the chamber and the insulation layer. It helps temperature recover faster and minimize heat loss.
Dry wall withinsulation requires no regular maintenance.

DUAL BEAM IR CO2 Sensor
Fast & precise detection for CO2 gas regardless of temperature and humidity.

Natural Humidification Using Water Tray
The heater on bottom side warms the water in tray and it makes humidification. The circulation fan delivers the moisture formed from the water in the entire chamber

Alarm System
Buzzer to alarm low or high deviation of CO2, Temperature.

Gentle Air and Moisture Convection
Natural Air and Moisture Convection, Air and Moisture in chamber are distributed gentlely by 6-side heating and air circulation fan.

Easy to clean
Rounded corner allows easy cleaning. The entire chamber is made of stainless steel(SUS304)

Over Heating Limit
Heating is automatically cut by safety device when temperature control fails or there is excessive heating over set point.

Perforated Shelves
Perforated shelves are good for natural air flows and are made of stainless steel which is resistant to rust and contamination.

No Condensation
Heating by front door heater & frame heater prevents condensation in the chamber and on the glass door.

Microprocessor PID Control
Intelligence Control for CO2 density, Temperature, Alarm, Automatic

Decontamination (Optional).
HEPA filtration of the chamber

Options
Customize your incubator with these options

Access port
25mm Access Port is available at left side. (Upon ordering and additional charge)

UV sterilization
4W UV is placed on the chamber ceiling and beside the circulation fan. The UV light cannot reach sample and sterilization is operated during culturing.

Maximum 125℃ dry hot air sterilization
No need to remove IR CO2 sensor

Monitoring System
Analog connection port has been designed to observe the status of equipments in real time even in the far distance.

lower Gas Consumption. lower Heat loss.
Faster Recovery Easy Classification for Varioussamples.
5 Split Door for WCI-40
6 Split Door for WCI-180

Specifications
Temp. Range： RT. +5~60℃
Temp. Resolution： 0.1℃
Dry Heat： Up to 125℃
Temp. Control： Digital PID
CO2 Range： 0% ~ 20%
CO2 Accuracy： ±0.1% (5% / 37℃ )
CO2 Resolution： 0.1%
CO2 Sensor： IR CO2 Sensor
Display： LED Display
Operating panel： Individual 2-Channel Touch Button
Jacket type： Air Jacket Type (6 sides heat)
Chamber material： Stainless Steel (304)
