WH200 Hotplate With Magnetic Stirrer | WIGGENS Germany
Call for Price
Digital Hotplate With Magnetic Stirrer
Brand: WIGGENS
Model: WH200
Origin: USA
- Maximum temperature setting [℃ ]: 250
- Speed setting range [rpm]: 100~1500
- Heat output [W]: 300
- Temperature and Speed display: LED display
- Top plate material: Aluminium alloy
- Top plate dimensions [mm]: 165 x150
Hotplate with Magnetic Stirrer

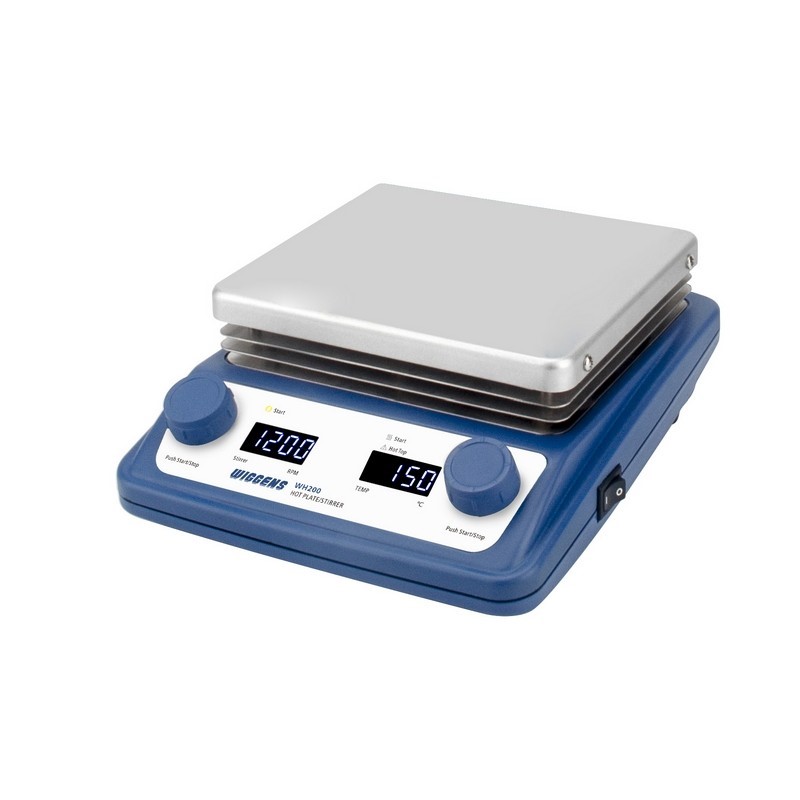

WH200 Hotplate With Magnetic Stirrer | WIGGENS Germany
Description
Our laboratory hotplates / stirrers are developed and produced according to high international quality standards.
> Advanced microprocessor controlling system guarantees the reliability and temperature stability.
> Bright and clear LED digital display and setting for the working temperature and stirring speed.
> Memory function for stirring speed and temperature setting, convenient for experiments with fixed conditions.
> Liquid drainage above the control board to prevent liquids from accessing the system.
> Direct connection for thermocouple sensor for convenient solution temperature control.
> WH200 and WH210 are suitable for general laboratory application.
> When the temperature of the top plate is above 60℃ , hot-top indicator will light up for the user’s safety protection.
Standard thermocouple sensor
Accurate solution temperature within ±1℃ in general range.
Temperature and Speed display
WH200 and WH210 display temperature and speed at the same time, and remember the last working parameters.
Safety protection
Flashing high temperature indicator, warning for hurt by touch.
Liquid drainage
Above the control board Avoid the solution splashing on the touch board.
Top plate material
WH200 with aluminum plate, WH210 with SS304 plate. WH210 SS304 coated with ceramic.
Technical Specifications:
| Model | WH200 |
| Maximum temperature setting [℃ ] | 250 |
| Maximum temperature setting with E-sensor [℃ ] | 250 |
| Safety temperature [℃ ] | 280 |
| Temperature stability with E-sensor [℃ ] | ±2 |
| Heat output [W] | 300 |
| External temperature sensor | Thermocouple |
| PID parameter | 1 set |
| Speed setting range [rpm] | 100~1500 |
| Temperature and Speed display | LED display |
| Temperature and Speed setting | Turning knob |
| Top plate material | Aluminium alloy |
| Top plate dimensions [mm] | 165 x150 |
| Dimensions W x D x H [mm] | 230X200X100 |
| Weight [kg] | 1.5 |
| Power supply | 220V/50Hz |
